SketchUp LayOut Construction Details Scrapbook
Tired of wasting hours drafting construction details?
With 150+ ready-to-use details—roofs, walls, foundations, and more—you can streamline your workflow and focus on design.
Simply open the Scrapbook in Layout, select a detail, and drop it into your drawing.
Customizable lines, text, and hatches make it easy to edit every detail. Get started today for less than 20 cents per detail and start creating architectural masterpieces faster!
Try a sample hereApologies for any translation mistakes; many definitions have been auto-translated.
All the details were initially organized into layers and Autotext. Since the Scrapbook details were loading very slowly, I converted Autotext to Text and removed all the layers. With the arrival of SU Layout 2025, I will evaluate whether there will be any changes, and if it seems worthwhile, I will set it back to layers and Autotext again.
If you're interested, I can translate all these construction details into Spanish or other languages.
If you're interested in improving these details, the Excel files in English and Spanish are below. If multiple changes are necessary, I will update the files and resend them to everyone.
Or write me a message if you think I can improve the quality of these details!
© These construction details were sourced from https://technonicol.com/.

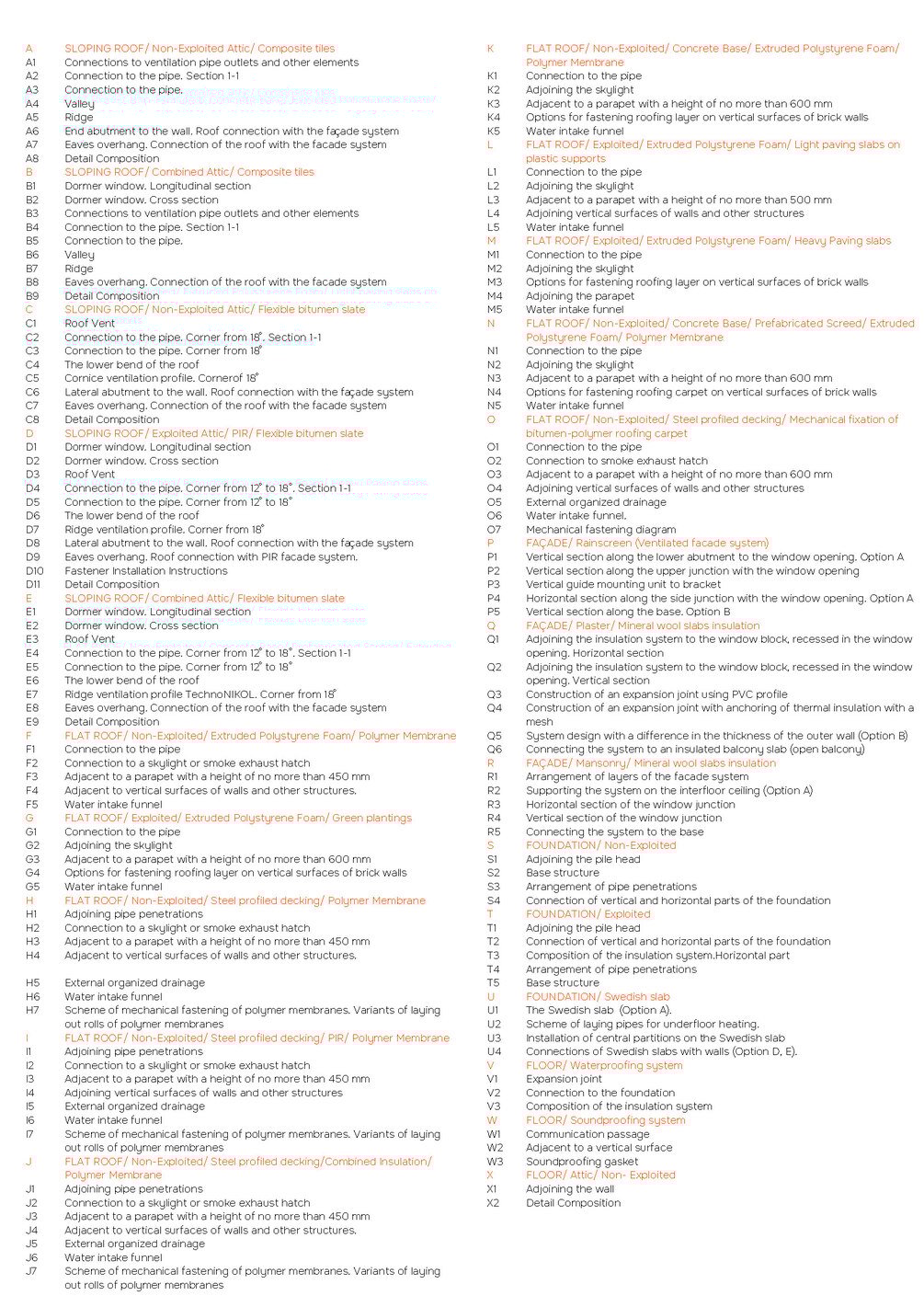

+150 Construction Details
